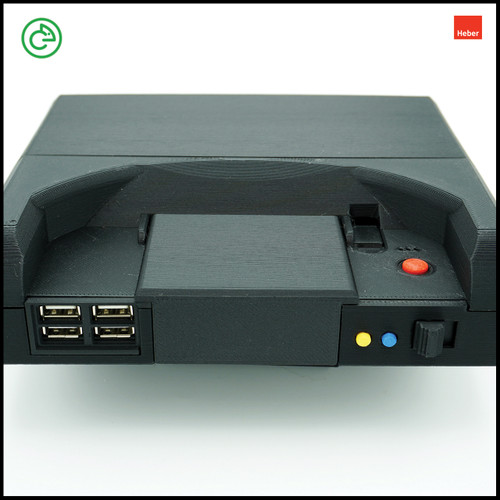

MiSTer Multisystem FPGA Console bundle in Black enclosure

MiSTer Multisystem

£190.80 (Inc. VAT)
£159.00 (Ex. VAT)
(No reviews yet) Write a Review
SKU:
01-23390-1
Availability:
Pre-order product - expecting to ship in late December 2024.
Minimum Purchase:
1 unit
Maximum Purchase:
5 units

Expected release date is 18th Dec 2024

Adding to cart… The item has been added

The Heber MiSTer Multisystem Is a console motherboard for the MiSTer FPGA project.

This is a pre-order for manufacture - please read carefully below about timescales for the manufacturing lead-time to delivery at the bottom of this listing.

This listing is for a fully assembled Multisystem console bundle including a black enclosure, Ethernet cable, USB hub cables (both included for Mister Pi & DE10-nano), 30mm fan, FPGA heatsink and all required fittings. - All you need to add is a DE10-nano or a Mister Pi, SD card and power supply (we recomend this 5V 4A meanwell PSU)

The built console bundle system included the Multisystem Motherboard (Includes 128MB SDRAM, 7 port USB Hub and Analogue I/O ++ See full details and datasheet below).



If you prefer just the assembled and tested motherboard only please see this listing here

Note : - You will need to add a DE10-Nano or Mister Pi FPGA development board for a complete retro gaming FPGA platform.



What is the MiSTer Multisystem?

The Multisystem datasheet can be found here - Heber_MiSTer_Multisystem_Datasheet_80-23043_Issue2_08_11_2022.pdf

The Multisystem manual is available on GitHub here - Multisystem/Manual at main · Heber-co-uk/Multisystem

The Multisystem is a kit with which to create your dream retro console. It allows you to run the MiSTer project in a convenient, consolised form factor. It’s available as a board only (170x170mm) or with our reference design 3D printed enclosure.

What you will receive: - (assembled and tested unit)



The key features of the Multisystem include;

  • Designed and manufactured in the UK by Heber Ltd
  • 100% compatible with all existing/current MiSTer cores,
  • HDMI, VGA and RGB SCART video outputs supporting modern and retro CRT displays,
  • Integrated RGB SCART sync and auto 4:3 or 16:9 selection (no need to edit ini files),
  • Audio output via 3.5mm, TOSlink and SCART,
  • Audio in via a 3.5mm input jack,
  • Integrated powered 7 port USB hub and internal USB headers,
  • 128mb SDRAM on board (can be removed and replaced if required),
  • Integrated SNAC (Serial Native Accessory Converter) support for original gamepad, light gun and peripheral support,
  • 3.3v and 5v fan connectors (3 pin),
  • Integrated level shifter - select SNAC or USER port - no need for extgernal level shift boards,
  • Add on cartridge slot for modular upgrades and enhancements (Various cartridges are available from this store),
  • Integrated HDMI isolation bank switches to suit your display (CEC/I2C/HotPlug/Power etc),
  • Integrated power switch with over voltage, over current and thermal trip protection,
  • The Multisystem PCB is 170 x 170mm.

For futher Multisystem information visit the official product page at www.heber.co.uk/product/multisystem/

To get the best experience out of your Multisystem we recommend a Mean Well 5v/4A PSU which is also available in our store (standard 'kettle lead' style mains cable is required, which is not included).

PLEASE NOTE

  • SCART, VGA and HDMI cables are not included as standard.
  • If purchasing the Mean Well PSU, a standard 'kettle lead' style mains cable is required, which is not included.
  • Non UK customers may be subject to local import taxes.

The Multisystem datasheet can be found here - Heber_MiSTer_Multisystem_Datasheet_80-23043_Issue2_08_11_2022.pdf

The Multisystem manual is available on GitHub here - Multisystem/Manual at main · Heber-co-uk/Multisystem



A summary of the most recent Multisystem console enclosure design can be seen in the video below -

Short circuit also did a review of the Multisystem, this video can be found here The Best Way To Play Retro Games? - MiSTer Multisystem



An assembly guide is included in the Multisystem user manual, and a video can be found here if you need any further assistance -MiSTer Multisystem Assembly Build Instruction Guide DE10-Nano FPGA Terasic Heber Pi-MMS @RMCRetro

If you wish to build your own Multisystem I/O motherboard, please see the following links below -

Full source files and documentation is available from our GitHub page - Heber-co-uk/Multisystem: The MiSTer Multisystem console Hardware PCB - FPGA platform (github.com)

If you wish to use the GERBER files to produce your own PCB's or modify the design, please feel free. This project is released as open source under a GPL3.0 License. (Commercial use is allowed).

Further images, a bill of materials and lots more details are available here - Multisystem/images at main · Heber-co-uk/Multisystem (github.com)

Shipping Information:

We expect to start shipment of early pre-orders in late December 2024. All orders will be sent out on by order number priority, orders placed after November 30th are expexcted/planned to be sent out in January 2025.

Other items ordered at the same time as this pre-order will be shipped as a single order.

This product is designed and manufactured by Heber Ltd in the UK

All Enclosures are 3D printed in house on our 3D printer farm.  For more information visit our blog

Please note:

  • Colours may differ from those shown due to different filament batches, varying lighting conditions and/or device settings.
  • All other items shown in images are for illustration only and are not part of what you will receive in this listing.

If you wish to 3D print your own enclosure, cartridges, and accessories, the 3D design files for this and many other enclosures will be available here - Printables (Multisystem - Heber)
