This 3D printed enclosure is designed to fit an 8.9" LCD module (provided by the user) and fit onto the back of a Multisystem2 Analogue or Multisystem2 Digital console.
This is a pre-order listing. Available to pre order on May 6th at 2:00pm UK time - We are manufacturing now and intend to start Multisystem2 shipments to customers in August 2025.
Shipping will be by pre-order number priority sequence.
Compatible with Multisystem2 not compatible with the original Multisystem.
Other items such at the Multisystem2 and LCD screen module are shown for illustration of this enclosure kit, You will need to source a suitable 8.9" LCD screen of alter the 3D print files for the screen you wish to use (see below details).
You will receive the following 3D printed parts, sticker and fixing kit:
- 1 x Black Multisystem2 LCD enclosure.
- 1 x Back mounting hinge - fixes to the back of Multisystem2.
- 1 x LCD bezel for 8.9" LCD screen.
- 1 x Multisystem2 sticker.
- 1 x Fixing kit with screws, bolts and nuts required.
Cables for connection of the LCD screen to the Multisystem2 and power are not supplied as they can use different connections depending on the supplier of the LCD screen module.

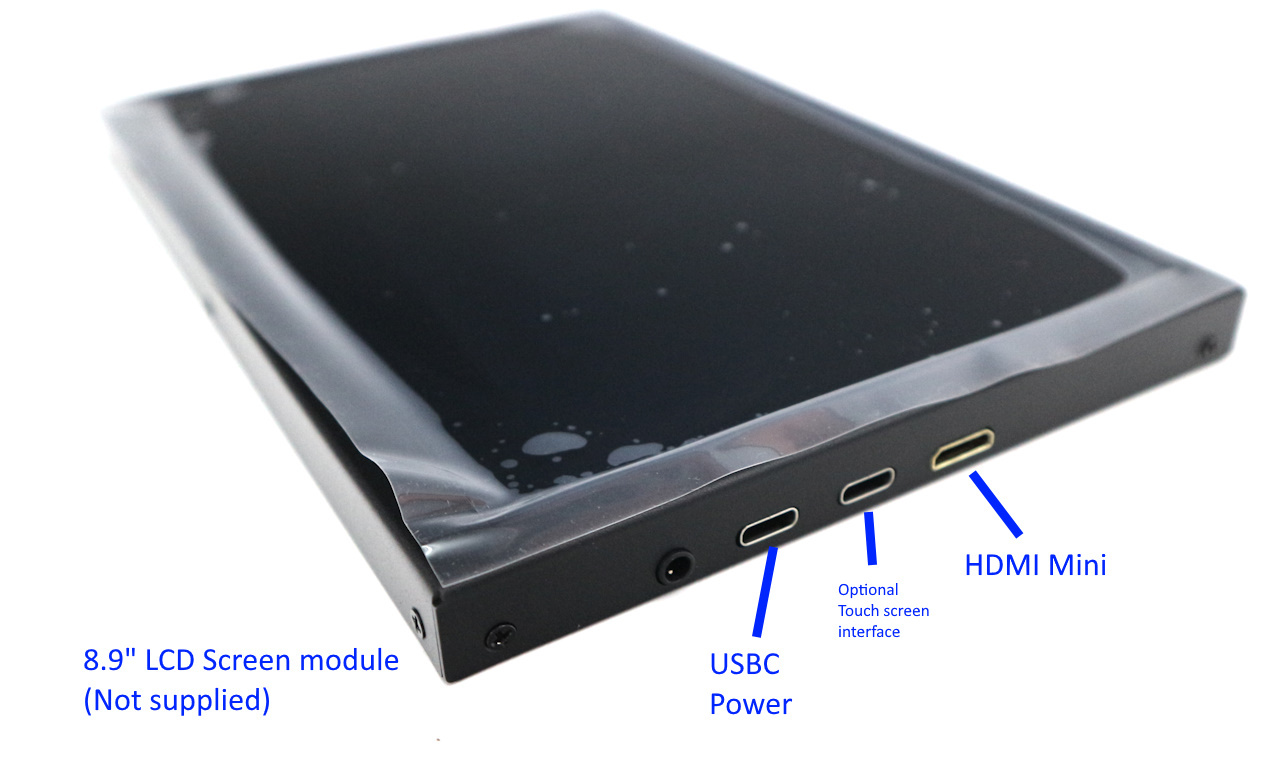

The most common screens available have a mini HDMI port and USBC for power.
This LCD screen is available on Amazon or other sources in China by different names or brands for usually under £50 UK / $60 USD. The LCD screen specification is 1920 x 1200 LCD and is most often sold with a built in touch screen.
Search for "8.9Inch Portable Touchscreen Monitor 1920x1200 HDMI USB-C LCD Mini Travel Touch"
- Item Type: LCD Touchscreen Monitor
- Material: Aluminum Alloy, LCD
- Screen Size: 8.9 Inch
- Backlight Type: LED
- Resolution: 1920x1200
- Viewing Angle: 160 Degrees Full View
- Outline Size: Approx. 206x138x11mm / 8.1x5.4x0.4in
- Display Area: 191.52(W)x119.70(H)mm / 7.5x4.7in
- Display Color: 16.7M
- Refresh Rate: 60Hz
- Contrast Ratio: 800:1

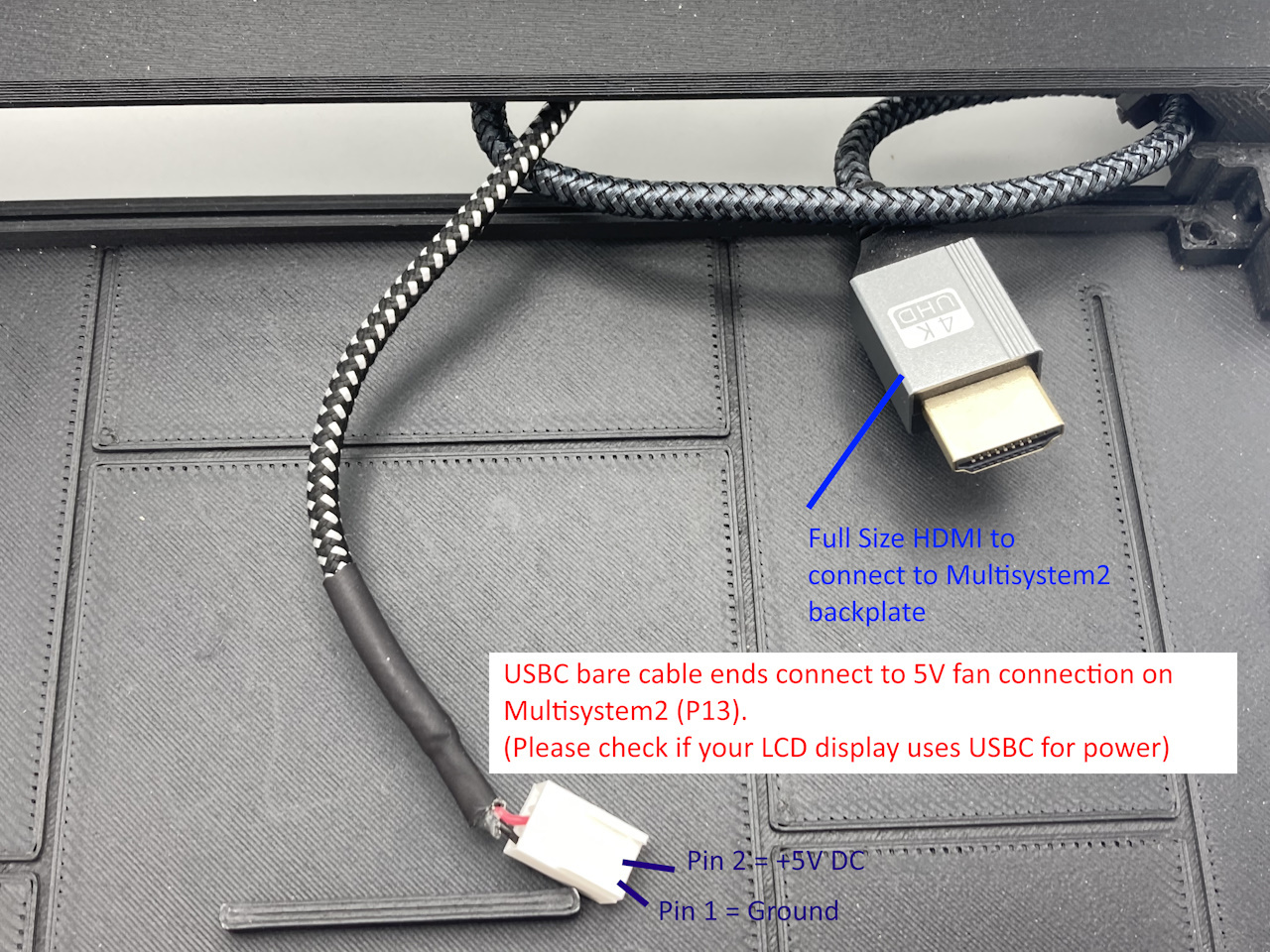

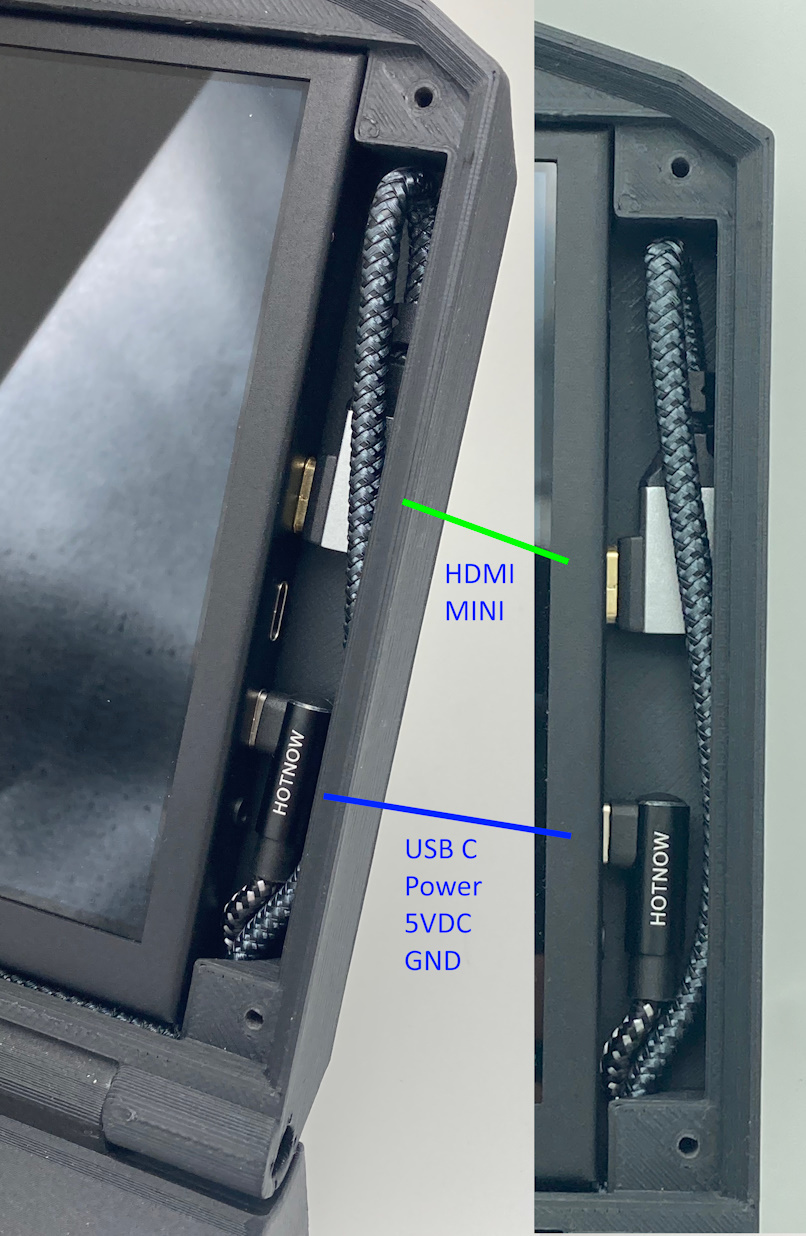

For connection to the Multisystem2 you will require a good quality HDMI Mini Right angled (Right) to full sized HDMI connector, usually 350mm to 500mm is an ideal total length.
Example HDMI Cable - (Not supplied) and example USBC to USB for power (Not supplied).

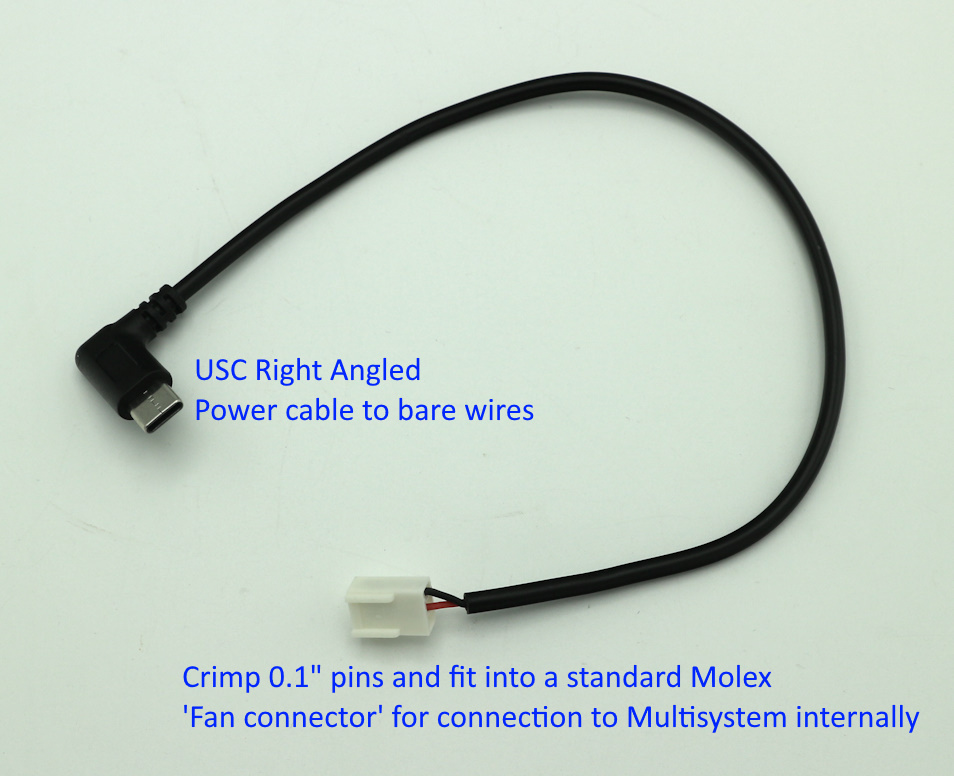

For USB power, you can use a USBC right angled connection to USBC or regular USB if you intend to power the LCD screen from an external source, or if you intend to use the internal power of the Multisystem2, you will require a USBC to power cable - 300mm long.

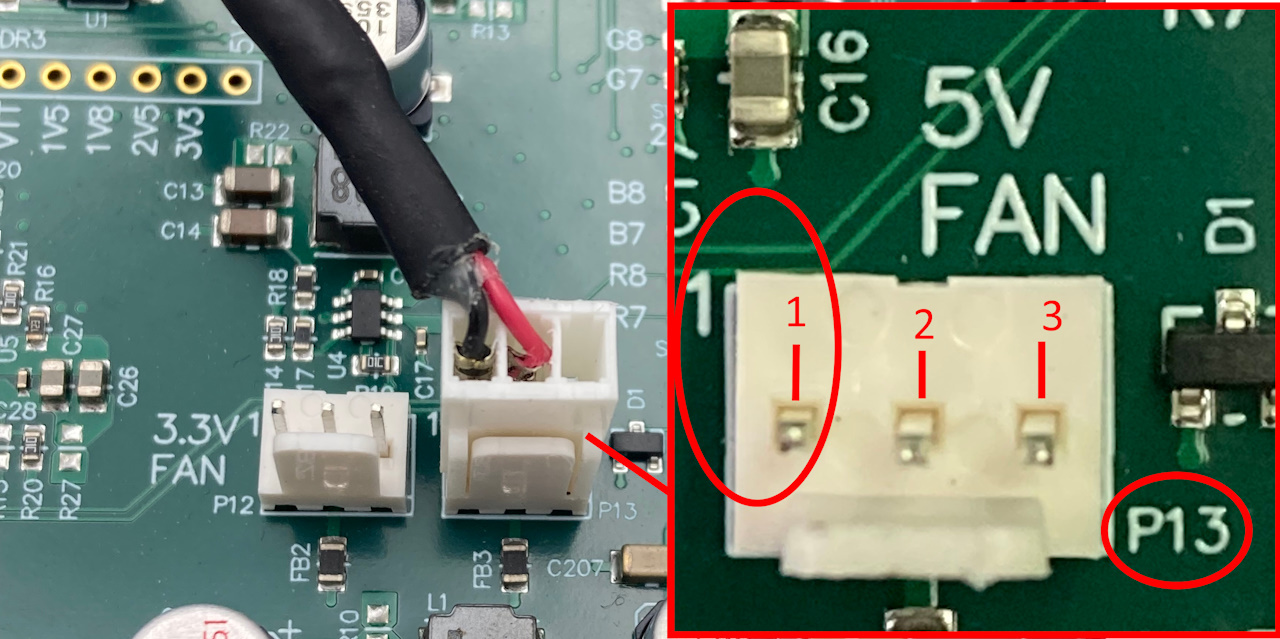

Two crimps and a standard Molex 3 way 0.1" 'fan header' is required to connect to the +5V power connection on Multisystem2
Example right angle USBC Power only cable (straightforward to use as a USB power cable) -
Please check both power connection and HDMI plug size of the LCD screen module you source, they can be different depending on supplier / manufacturer.
This 3D printed enclosure is designed and manufactured by Heber Ltd in the UK
All enclosures are 3D printed in house on our 3D printer farm. For more information visit our blog.
Please note:
- Colours may differ from those shown due to different filament batches, varying lighting conditions and/or device settings.
- All other items shown in images are for illustration only and are not part of what you will receive in this listing.
If you wish to 3D print your own Multisystem enclosure, slice tray, and accessories, the 3D design files for this and many other enclosures are available here - Printables (Multisystem - Heber)
